Guide: utility, meter and tariff setup

Two worked examples of telling the bridge what your electricity costs:

1. A flat plan: AGL Energy, one import price and one feed-in price, plus a daily supply charge.
2. A dynamic plan: Amber Electric, priced from the AEMO wholesale (NEM) spot price for NSW1.

Then a comparison, what the bridge does and doesn't model, and how the prices feed the Scheduler.

All prices on this page are examples

The cents per kWh, supply charge and membership fee below are plausible examples, not AGL's or Amber's actual prices. Take your own from your bill or your plan's energy fact sheet. Meter and account numbers are made up.

The screenshots come from a test bridge running the demo gateway, so energy totals stay at zero. See Limits of the demo.

Before you start: one service prices everything

A utility service describes one electricity connection: the meter, the network's permissions, the retailer's plan and its prices. The bridge creates one for you, called Service 1.

Edit Service 1 rather than adding a second one

In 0.2.8 the bridge prices energy from the first enabled service in the list only (gateway/billing.py: "first service defines the plan (v1: single service)"). A second service that you add is stored, and can be linked to a gateway, but its tariff is not used for pricing, Energy Costs or the tariff.* sensors. For a single home, turn Service 1 into your plan, as below.

Likewise, the running cost totals (energy.import_cost, energy.export_credit) are accumulated from the primary gateway (ID default) only, whichever gateway you link to the service.

Everything below is in Settings → Energy & Automation (?tab=settings&section=energy), except the gateway link (Site & Gateways) and the spot price region.

---

Example 1: a flat plan (AGL Energy)

Part	Example value
Retailer	AGL Energy
Network (DNSP)	Ausgrid
Import (buy)	33 c/kWh, all day, every day (example)
Feed-in (sell)	5 c/kWh (example)
Daily supply charge	$1.10/day (example)
Billing cycle	starts on the 1st

Step 1 — Site name (optional)

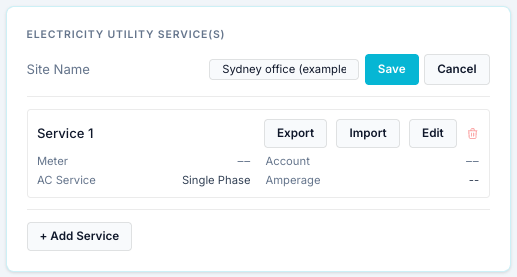

At the top of the card, Site Name → Edit. This is the name of the whole site, shown on the simple dashboard.

Known problem in 0.2.8

Pressing Save here fails with "Save failed: … extra inputs are not permitted … updated_at": the form sends read-only fields back to the bridge. The site name stays My Site. It is cosmetic; nothing is priced from it.

Step 2 — The service: meter and connection

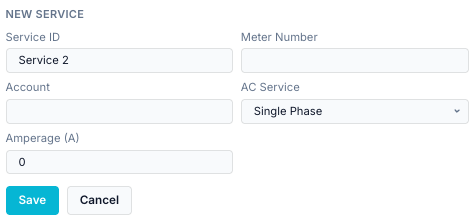

For reference, this is what + Add Service shows for a new service. For the reason above, this example edits Service 1 instead (click Edit on it).

Field	Example	What it is
Service ID	AGL Energy — main meter	The service's display name. Despite the label, you can rename it.
Meter Number	4103000000 (example NMI)	Your meter identifier. In Australia, the 10–11 character NMI printed on your bill. For your records and the support summary (where it is removed); nothing is looked up from it.
Account	1234 5678 (example)	Your retailer account number. For your records.
AC Service	Single Phase	Single, split or three phase: how the house is connected. Most Australian homes are single phase.
Amperage (A)	63	The rated current of the connection (the main switch or service fuse rating). For your records.

Meter number, account and the network approval below are never included when you Export a tariff to share it.

Step 3 — Grid connection and retail plan

Grid connection (from the network, survives a change of retailer):

Field	Example	Notes
Network / DNSP	Ausgrid	Your distributor, printed on the bill.
Permission To Operate	Approved	The network's approval for your solar/battery. Becomes service.pto_approved (1 when Approved).
PTO reference	(empty)	The approval number, if you have it.

Retail plan:

Field	Example	Notes
Retailer	AGL Energy	Groups the Energy Costs history by supplier.
Plan type	Flat rate	Not chosen: worked out from the rates you enter in step 4.
Export limit (kW)	0	0 = unlimited. Your approved export limit, if any.
Export / charging boxes	all ticked	What the plan permits. Recorded and testable in schedules (service.*), not enforced.
Country	AU
Plan timezone	Australia/Sydney	The timezone the plan's times are written in. If it differs from the bridge's clock, service.tz_matches_clock becomes 0.

Leave Peak-demand import charge, Battery export bonus and Two-way export charge unticked for a plain flat plan. Billing cycle day 1 means each billing period starts on the 1st of the month; set it to your bill's start day.

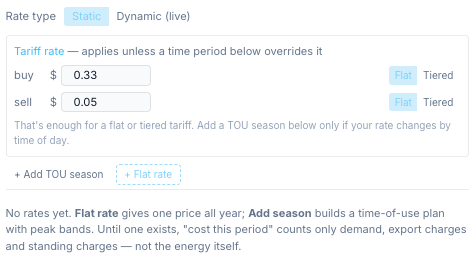

Step 4 — The flat import and feed-in rates

Open the Energy rates tab. Keep Rate type on Static. Under Tariff rate, enter the prices in dollars per kWh:

Side	Enter	Means
buy	0.33	33 c/kWh for every kWh imported (example).
sell	0.05	5 c/kWh for every kWh exported (example).

That is all a flat plan needs. You don't add a season. Enter prices as your bill shows them: the bridge applies no tax to energy rates, so use GST-inclusive prices if you want GST-inclusive costs.

Note

Under the rates the editor still says "No rates yet … Until one exists, 'cost this period' counts only demand, export charges and standing charges — not the energy itself." With a tariff rate filled in, that message is out of date: the rate above is used (see Energy Costs below for what is shown where).

Step 5 — The daily supply charge

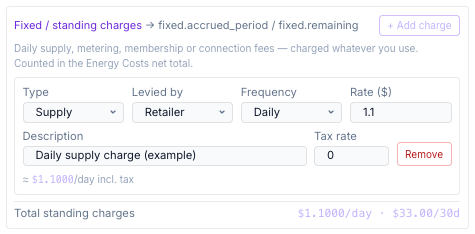

Open Standing charges → + Add charge:

Field	Example
Type	Supply
Levied by	Retailer
Frequency	Daily
Rate ($)	1.10 (example)
Description	Daily supply charge
Tax rate	0 (the example price already includes GST; enter 0.1 to add 10 %)

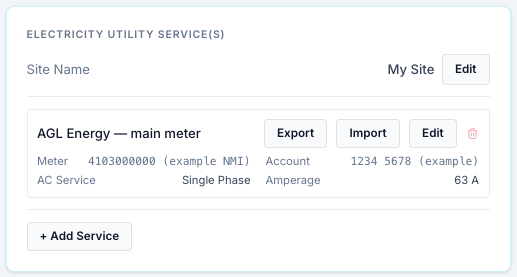

Press Save. The service list now shows the AGL service:

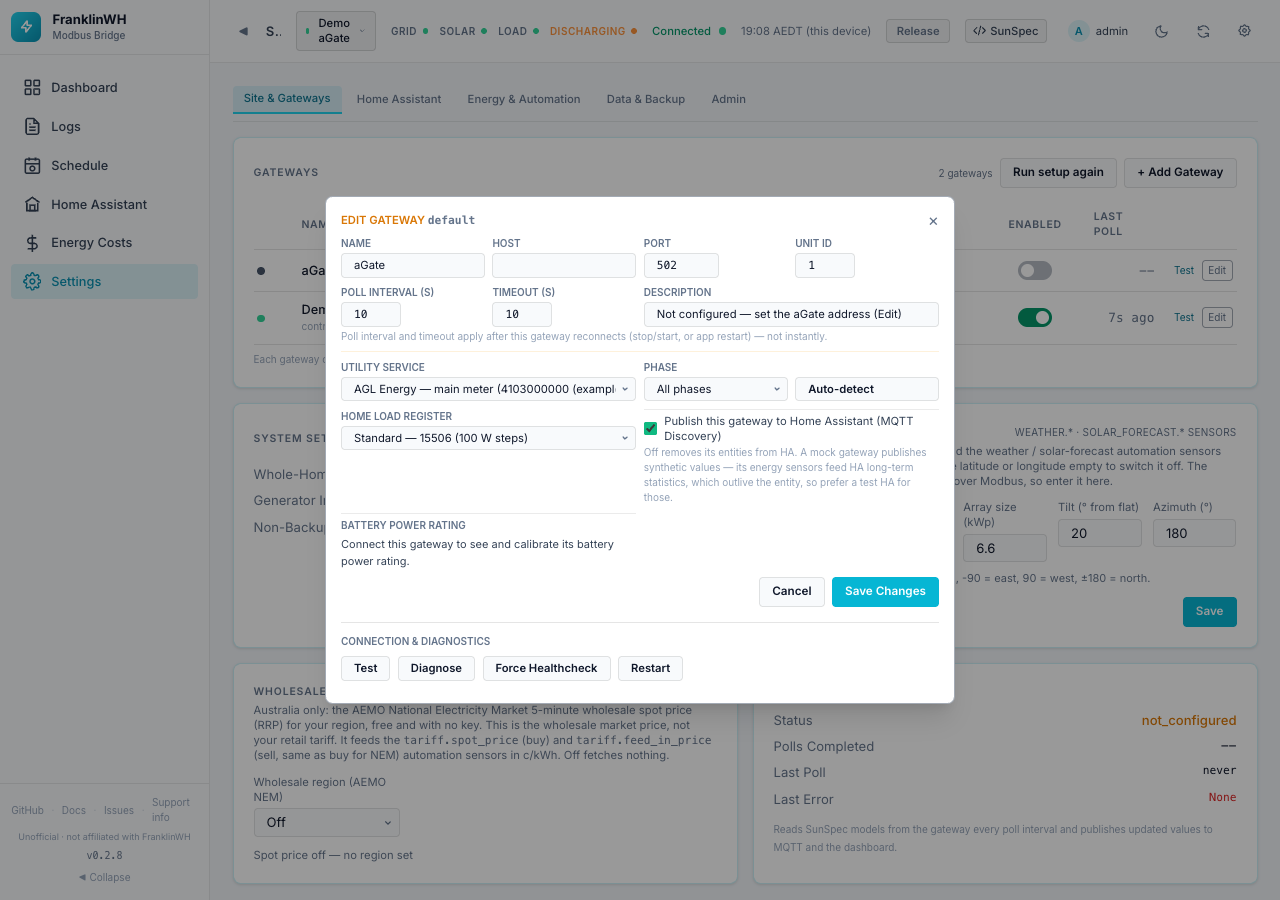

Step 6 — Link the gateway to the service

In Settings → Site & Gateways, click Edit on your aGate and pick the service under Utility Service, then Save Changes.

This records which meter the aGate sits behind. It is used by schedules that target a service (they act on every gateway linked to it). As noted above, it does not choose which tariff prices energy in 0.2.8. (In the screenshot the dialog was cancelled, so the test bridge's gateways were not changed.)

Step 7 — What you see

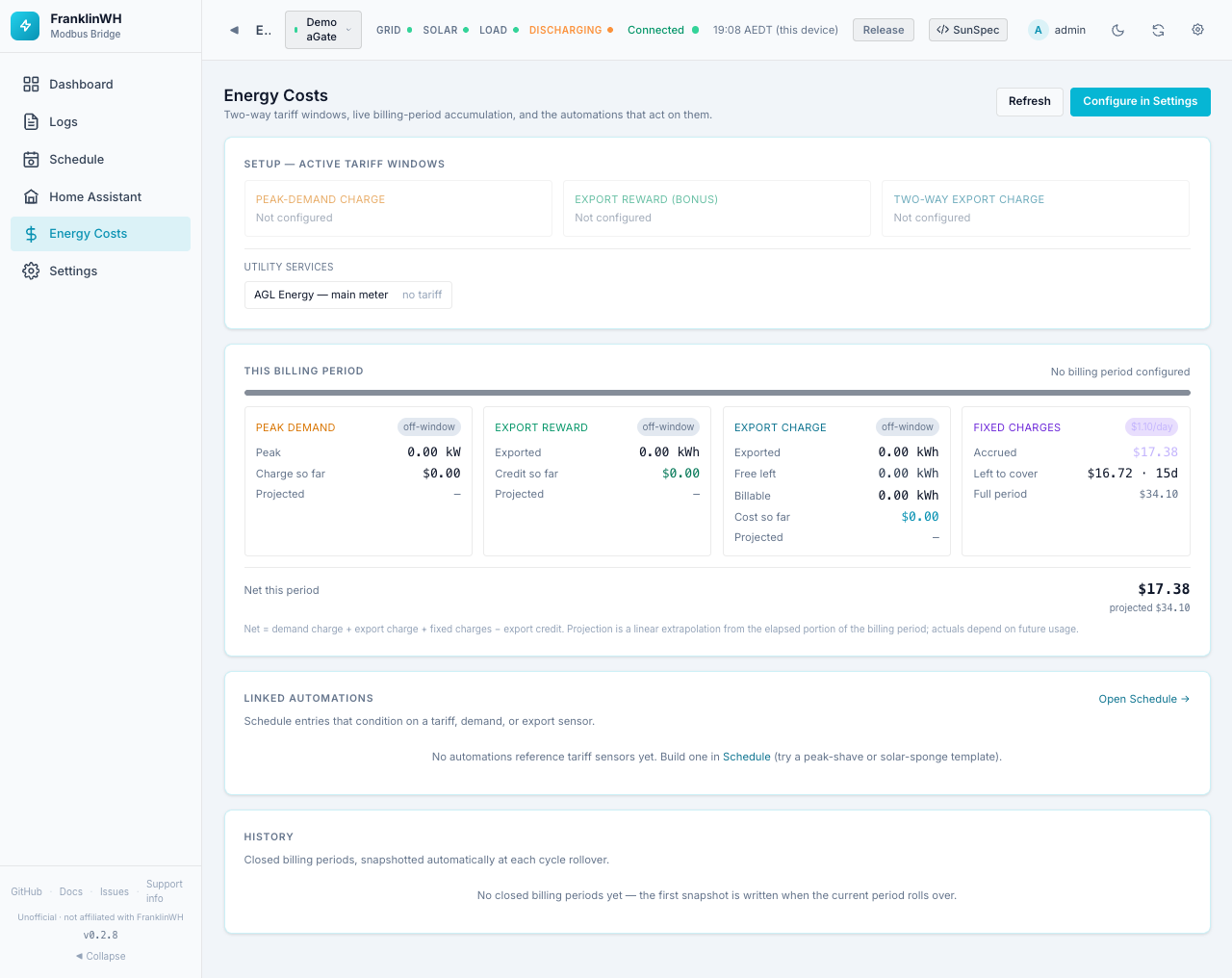

Energy Costs (turn the page on in Feature Modules if it is hidden):

• Fixed charges shows the supply charge: $1.10/day, accrued so far this period, what is left, and the full-period total.
• Net this period includes the supply charge.
• The utility service shows no tariff and the import/feed-in cost does not appear in Net this period. The live page only adds demand, export-charge, fixed charges and the export bonus. The cost of the energy itself is tracked in the energy.import_cost and energy.export_credit sensors, and it is included in each closed period's History row (gateway/demand.py adds energy_cost and energy_credit to the period's net_total).

Tip

Without the supply charge, a flat plan on its own shows No tariff configured on Energy Costs, even though its rates are in use.

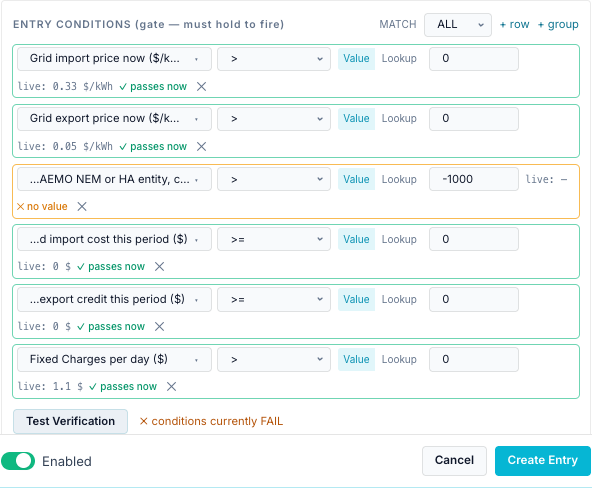

Sensors — open Schedule → + Add Entry, add the sensors as entry conditions and press Test Verification to see their live values:

Sensor	Value here	Meaning
tariff.buy_rate	0.33 $/kWh	Import price now. Constant on a flat plan.
tariff.sell_rate	0.05 $/kWh	Feed-in price now.
tariff.spot_price	no value	Wholesale price: none, because no NEM region is set.
energy.import_cost	$0	Import cost so far this billing period.
energy.export_credit	$0	Feed-in credit so far this billing period.
fixed.daily_charge	$1.10	Standing charges per day.

energy.import_cost and energy.export_credit are $0 here because the demo gateway is not the primary gateway. On a real install they grow with your grid import and export meters.

---

Example 2: a dynamic plan (Amber Electric on the NEM spot price)

Amber Electric passes the wholesale price through to you, so your price changes every five minutes. The bridge can follow the AEMO National Electricity Market (NEM) wholesale spot price for your region. This is #89 part B ("dynamic pricing").

Part	Example value
Retailer	Amber Electric
Price source	AEMO NEM wholesale spot, region NSW1
Network daily supply	$1.10/day (example)
Amber membership	$25/month (example)

Needs: internet access from the bridge to visualisations.aemo.com.au (public, no key). Australia only.

Step 1 — Wholesale spot price card (optional)

In Settings → Site & Gateways → Wholesale spot price, choose region NSW1. It saves at once and shows the price now:

The price shown is AEMO's 5-minute regional reference price (RRP): $/MWh ÷ 10 = c/kWh (here, $88.86/MWh = 8.89 c/kWh). It feeds tariff.spot_price and tariff.feed_in_price.

This card alone does not price your energy: it only provides the sensors. Step 2 is what makes the plan dynamic. A dynamic plan fetches its own region even if this card is left on Off.

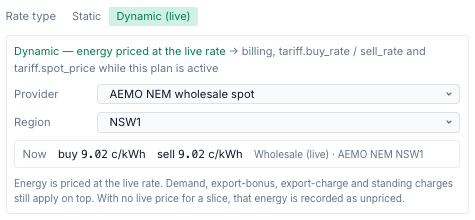

Step 2 — Make the plan dynamic

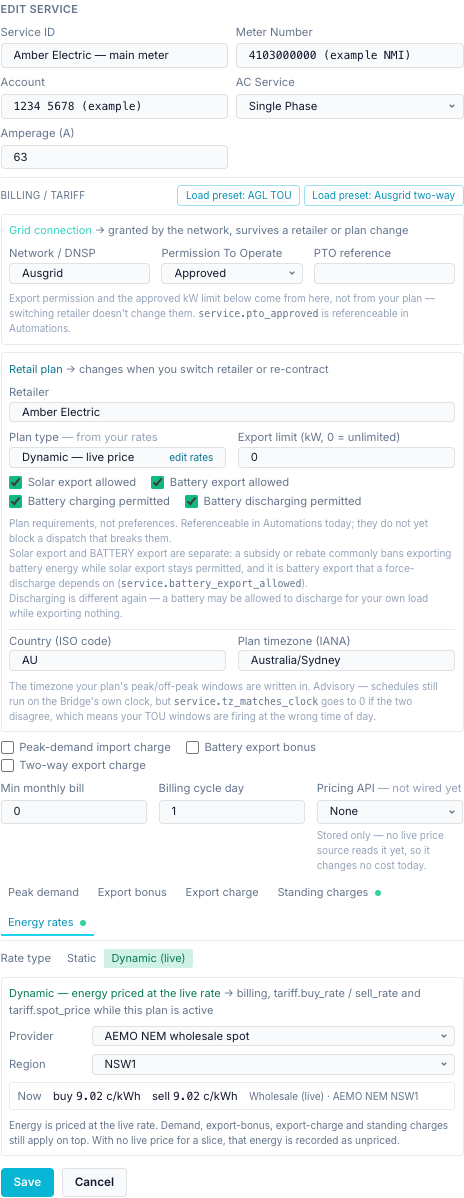

Edit the service: set Service ID to Amber Electric — main meter and Retailer to Amber Electric. Then open Energy rates and set Rate type to Dynamic (live):

Field	Choose
Provider	AEMO NEM wholesale spot
Region	NSW1 (QLD1, SA1, TAS1 and VIC1 also exist)

The box shows the live price now. Note that buy and sell are the same number: the wholesale price, with nothing added.

Under Standing charges, add the fixed parts of the bill: the network supply charge (daily) and Amber's membership (monthly, type Membership, levied by Retailer). Then Save.

Your static rates from example 1 stay on file while Dynamic is on, and come back if you switch to Static.

Changing retailer mid-period

Editing the same service from AGL to Amber, as here, keeps the current billing period running. Costs accrued under AGL's prices and Amber's prices land in one period. The bridge has an API to close the period and start a new plan (POST /api/services/{id}/switch-plan), but no button for it in 0.2.8.

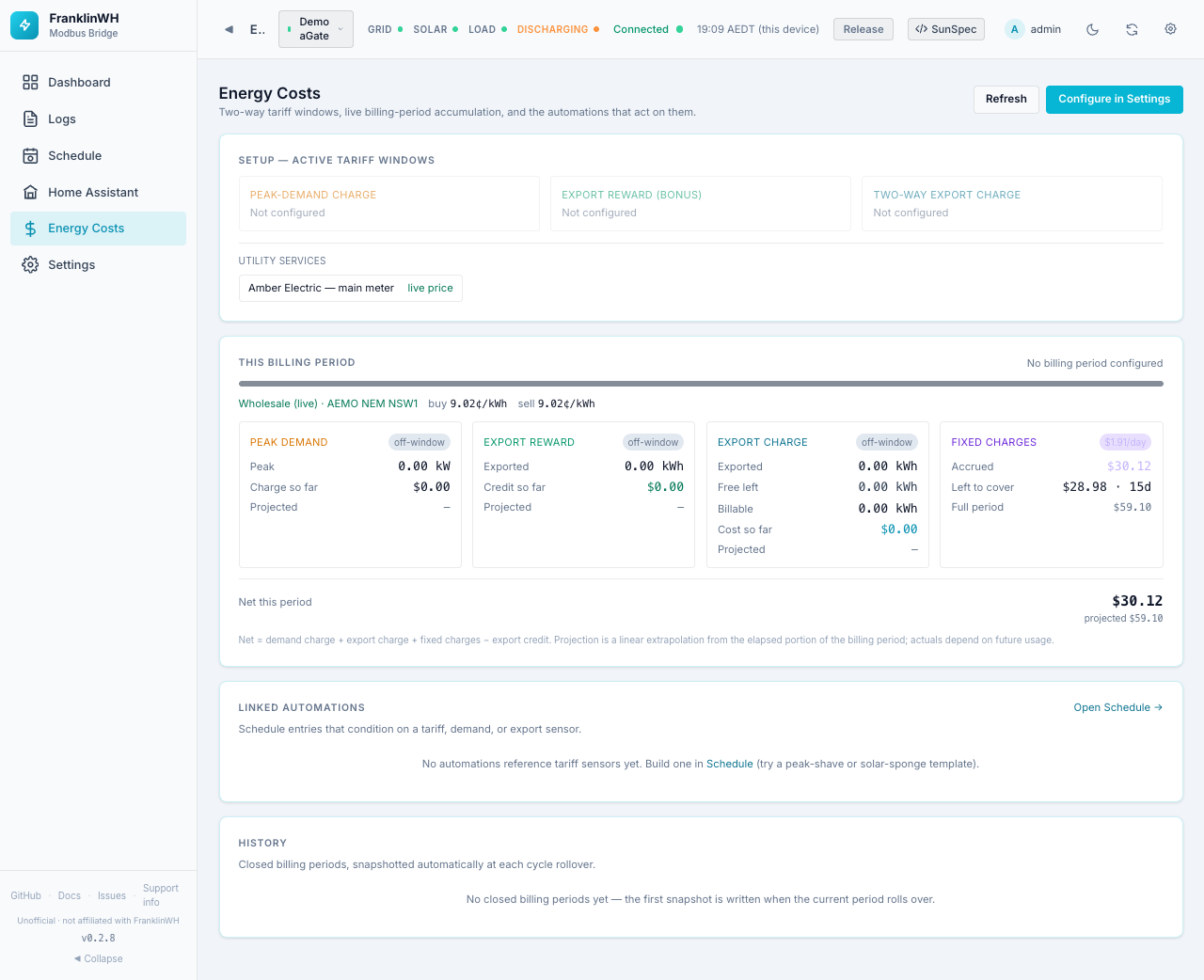

Step 3 — What you see

Energy Costs:

• The service is marked live price.
• A line under the period bar shows Wholesale (live) · AEMO NEM NSW1 and the buy and sell price now.
• Fixed charges total the supply and membership charges ($1.10/day + $25/month ≈ $1.91/day in the example).
• When no live price is available for a while (AEMO unreachable, or the cached price older than 10 minutes), the energy in that time is counted as unpriced kWh instead of being priced at an old rate. The page then says how many kWh were unpriced.

Sensors:

Sensor	Value here	Meaning
tariff.spot_price	9.76 c/kWh	The plan's live buy price (the NEM spot for NSW1).
tariff.feed_in_price	9.76 c/kWh	The plan's live sell price. Same as buy for NEM.
tariff.buy_rate	0.0976 $/kWh	The rate billing is charging now, in $/kWh.
tariff.sell_rate	0.0976 $/kWh	The rate billing is crediting now.
tariff.time_period	Wholesale (live) · AEMO NEM NSW1	What priced the energy, instead of Off-Peak / On-Peak.
energy.unpriced_import_kwh	0 kWh	Import that had no live price.

While a dynamic plan is active, tariff.spot_price and tariff.feed_in_price follow the plan's source and override the Wholesale spot price card's region (gateway/aemo_nem.py, as_points). The wholesale price can be negative; the sensors and the cost then go negative too.

---

Flat vs dynamic at a glance

	Flat plan (AGL example)	Dynamic plan (Amber example)
Rate type	Static	Dynamic (live)
Where the price comes from	The numbers you typed	AEMO NEM 5-minute spot for your region (or a Home Assistant price entity)
Buy vs sell	Separate prices (33 c vs 5 c)	Identical for NEM: buy = sell = spot
Changes	Only when you edit it	Every 5 minutes
Plan type shown	Flat rate	Dynamic — live price
tariff.buy_rate / sell_rate	0.33 / 0.05 $/kWh, fixed	Live spot in $/kWh
tariff.spot_price	No value unless the Wholesale card has a region	Live, in c/kWh
tariff.time_period	— (or the TOU period with seasons)	Wholesale (live) · AEMO NEM NSW1
Can go negative	No	Yes
Needs internet	No	Yes, to AEMO
When the price is missing	Never missing	Energy counted as unpriced kWh
Energy Costs badge	no tariff (unless other parts are on)	live price
Standing charges	Added under Standing charges	Same

What the bridge models, and what it doesn't

The dynamic plan prices energy at the raw wholesale price. Amber's real retail price is not the wholesale price.

Part of an Amber bill	Modelled?	How, or why not
Wholesale energy (spot price)	Yes	gateway/aemo_nem.py fetches AEMO's ELEC_NEM_SUMMARY every 240 s and converts RRP $/MWh to c/kWh (÷ 10). gateway/dynamic_pricing.py turns it into the plan's live rate, with sell = buy = spot.
Network (DNSP) usage charges, per kWh	No	Nothing adds a per-kWh amount on top of the live price. These are often the largest part of an Amber price, and vary by time of day.
Environmental / market charges, per kWh	No	Same: not added.
GST on energy	No	The live price is used as-is (aemo_nem.py divides RRP by 10; no tax).
Amber's own feed-in price	No	NEM gives one price; the bridge uses it for both buy and sell. Amber's feed-in differs from its buy price.
Network daily supply charge	Yes, if you add it	As a Standing charge (gateway/fixed_charges.py).
Amber membership fee	Yes, if you add it	As a Standing charge, type Membership.
Peak-demand or export charges	Yes, if configured	The Peak demand / Export charge tabs work with either rate type ("Demand, export-bonus, export-charge and standing charges still apply on top").
Amber's 30-minute settlement	Uncertain	The bridge prices each sample at the latest 5-minute price; how closely this tracks Amber's 30-minute billing has not been checked.
A forecast of prices	No	Only the current price; no price forecast.

So the Energy Costs and energy.import_cost figures for a NEM dynamic plan will be lower than your Amber bill, by the network, market and GST components. They are useful for deciding when power is cheap (the timing follows the spot price), not for reconciling the bill.

For Amber's actual retail price

Choose Provider: Home Assistant price entity instead, and pick the Amber integration's general price (buy) and feed-in price sensors in Home Assistant. Those include Amber's network and other charges. This needs a Home Assistant instance and the entities exposed on the Home Assistant page. A value in $/kWh is converted to c/kWh (aemo_nem.ha_price_c_kwh); with no feed-in entity, sell falls back to the buy price. This option could not be shown here: the test bridge has no Home Assistant.

For a static plan the rate comes from gateway/rate_model.py (resolve): the season for this month, the block for this time of day, and that time period's buy/sell price, falling back to the tariff-wide rate; an hour with no price at all is counted as unpriced.

Where the prices go: Scheduler conditions

All of these are condition sensors in the Scheduler. The full list is in Conditions → Every sensor in the picker.

Sensor	Group in the picker	Use it to
tariff.buy_rate, tariff.sell_rate	Tariff	Charge when import is cheap, discharge when feed-in pays well. Works for both plan types.
tariff.spot_price, tariff.feed_in_price	Tariff	React to the wholesale price, in c/kWh. See the spot price example.
tariff.time_period, tariff.season, tariff.tier	Tariff	Act in a TOU band (static plans with seasons).
energy.import_cost, energy.export_credit, energy.unpriced_*_kwh	Energy	Running totals for the billing period.
fixed.*	Fixed Charges	Standing charges per day, accrued, remaining.
service.*	Utility Plan	Check the plan allows battery export (service.battery_export_allowed) before a force discharge to grid; service.tz_matches_clock.

Remember that the export and charging permissions are only enforced if your schedules test them.

Limits of these screenshots

• Live NEM prices worked: the test bridge had internet access, so the prices shown (8.89 c/kWh, 9.76 c/kWh) are real NSW1 spot prices from the day of capture.
• Energy totals are zero: the test bridge runs only the demo gateway, and the cost accrual follows the primary gateway, which was not set up. On a real install energy.import_cost and energy.export_credit grow with your meters.
• No History rows: closed billing periods only appear after a month boundary.
• Gateway link not saved: the Utility Service dialog was opened and cancelled, so the test bridge's gateways were not changed.
• No Home Assistant price entity: the test bridge has no Home Assistant.
